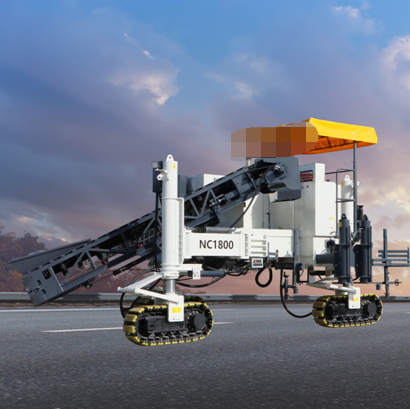

Slipform Paver

technical parameter

Maximum paving width: 250cm

Maximum paving height: 180cm

Paving speed: 0-15m/min

Minimum turning radius: 100cm

Walking speed: 0-35m/min

Hydraulic system: The hydraulic pump, motor, and valve adopt internationally renowned brands

Electrical system: dual independent controllers and sensors with independent intellectual property rights, purchased from well-known domestic and foreign brands

Vibration rod: Eight hydraulic vibration lines, independently adjustable

Material conveying system: The twisting dragon is driven by a high torque hydraulic motor for feeding, and the hydraulic adjustment angle and expansion are adjusted

Walking system: Three track hydraulic drive, planetary deceleration, and independent steering capability

Engine: Cummins QSB3.9 Power 97KW

Standard configuration: a vibrating rod, a set of curbstone molds, and a conveyor belt for feeding;

Optional: 1. Up to eight vibration rods can be added, and various structural molds such as anti-collision walls, ditches, and road shoulders can be customized according to engineering needs; 2. Lateral milling machine; 3. Right leg extension;
